4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength

  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
Menşe yeri Guangdong, Çin
Min sipariş miktarı 1

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
ÇIKIŞ Gücü 2000W Boyutlar 620x490x878mm
Ağırlık 100,5 kg Lazer dalga boyu 1080 ± 5nm
Çalışma modu sürekli/modülasyon Güç ayarı 10~100%
Fiber çekirdek çapı 50 ((25,100, 200 isteğe bağlı) Işığı hedefleyen Kırmızı ışık
Fiber uzunluğu 10m Kaynak hızı 0~120 mm/sn
Malzeme kalınlığı <3,5 mm (malzemeye bağlı olarak) Çalışma sıcaklığı 10-40 ℃
Çalışma nemi %10-85, yoğunlaşma yok Tel besleme hızı 38~600 mm/dak
Tel Besleme Çapı 0,8/1,0/1,2/1,6 mm Soğutma Yöntemi Hava Soğutma
Çalışma voltajı 220v, 50/60hz
Vurgulamak

4-in-1 Functional Handheld Laser Welding Machine

,

2 Years Warranty Portable Laser Welder

,

1080±5nm Wavelength Fiber Laser Welding Machine
Mesaj bırakın
Ürün Açıklaması

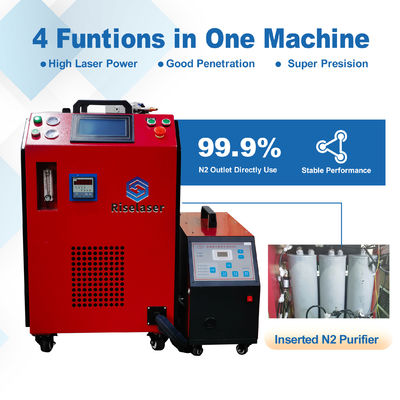

Integrated Nitrogen Generator 4-in-1 Functional Air Cooled Laser Welding Machine
4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 0 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 1 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 2 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 3 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 4 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 5 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 6 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 7 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 8 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 9 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 10 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 11
Technical Specifications
Feature Specification
Output power 800W/1200W/1500W/2000W
Laser wavelength 1080±5nm
Operating mode Continuous/Modulation
Power adjustment range 10~100%
Fiber core diameter 50(25,100,200 optional)
Aiming and positioning Red light
Fiber length 10m
Welding speed 0~120mm/s
Applicate thickness <3.5mm(depending on the material)
Working environment 10-40℃,humidity 10-85%,no condensation
Wire feeder Standard wire feeding speed 38~600mm/min
Wire feed diameter 0.8/1.0/1.2/1.6mm

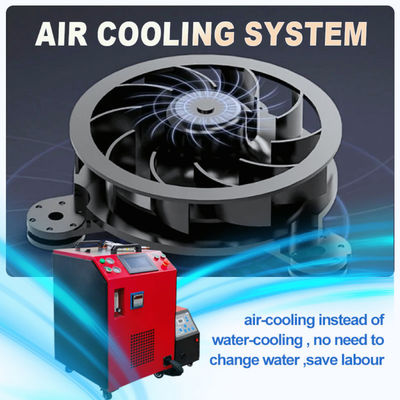

Cooling way Air cooling
Operating voltage 220V,50/60Hz
4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 12 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 13 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 14 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 15 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 16 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 17 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 18
Frequently Asked Questions
1. How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
3. How thick can 1500W-3000W be welded?
1-8mm thick metal materials.
4. Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, please contact us and provide your email address. We will send more detailed pictures to your email.
5. Can aluminum and galvanized steel be welded?
Yes, it can.
6. Packaging
All our machines are packed in wooden boxes.
7. Language interface
Supports language customization. You can also translate and insert to software.
